Applied Statistics Exercise 9.3

$\text{1. Define Statistical Quality Control.}\\$
$\text{Statistical Quality Control (SQC) is the application of statistical techniques}\\$
$\text{to monitor, control, and improve the quality of products or processes. It uses}\\$
$\text{tools such as control charts, sampling inspection, and process capability analysis}\\$
$\text{to ensure that the production process operates at the desired level of quality.} \\$

$\text{2. Mention the types of causes for variation in a production process.}\\$
$\text{There are two causes of variation which affects the quality of a product:} \\$
$\text{1. Chance Causes (or) Random causes}\\$
$\text{2. Assignable Causes}\\$

$\text{3. Define Chance Cause.} \\$
$\text{These are small variations which are natural and inherent in the manufacturing} \\$
$\text{process. The variation occurring due to these causes is beyond the human control}\\$
$\text{and cannot be prevented or eliminated under any circumstances. The minor causes} \\$
$\text{which do not affect the quality of the products to an extent are called as Chance }\\$
$\text{Causes (or) Random causes. For example Rain, floods, power cuts, etc.} \\$

$\text{4. Define Assignable Cause.}\\$
$\text{The variation which is present in any production process is due to non-random}\\$
$\text{causes is called Assignable causes. It may occur in at any stage of the process,} \\$
$\text{right from the arrival of the raw materials to the final delivery of the product.} \\$
$\text{Some of the important factors of assignable causes are defective raw materials,} \\$
$\text{fault in machines, unskilled manpower, worn out tools, new operation, etc.} \\$

$\text{5. What do you mean by product control?}\\$
$\text{Product Control means that controlling the quality of the product} \\$
$\text{by critical examination through sampling inspection plans. Product} \\$
$\text{Control aims at a certain quality level to be guaranteed to the customers.} \\$
$\text{It attempts to ensure that the product sold does not contain a large number} \\$
$\text{of defective items. Thus it is concerned with classification of raw materials,} \\$
$\text{semi-finished goods or finished goods into acceptable or rejectable products.} \\$

$\text{6. What do you mean by process control?}\\$
$\text{The main objective in any production process is to control and maintain}\\$
$\text{a satisfactory quality level of the manufactured product. This is done} \\$
$\text{by 'Process Control'. In Process Control the proportion of defective}\\$
$\text{ items in the production process is to be minimized and it is achieved}\\$
$\text{through the technique of control charts.} \\$

$\text{7. Define a control chart.} \\$
$\text{A control chart is a statistical tool used to study how a process}\\$
$\text{ changes over time by plotting sample data against predetermined}\\$
$\text{ control limits, helping to distinguish between normal process }\\$
$\text{variation and variation caused by assignable factors.} \\$

$\text{8. Name the control charts for variables.}\\$
$\text{The control charts for variables include:} .}\\$
$\text{(i) Charts for Mean} ( \bar {X} ) .}\\$
$\text{(ii) Charts for Range (R)} .}\\$

$\text{9. Define mean chart.}\\$
$\text{A mean chart is a type of control chart used to monitor the average or }\\$
$\text{mean value of a quality characteristic of a process over time, helping}\\$
$\text{to determine whether the process mean is in a state of statistical control.} \\$

$\text{10. Define R Chart.}\\$
$\text{An R-chart is a control chart used to monitor the variability or dispersion} \\$
$\text{ of a process by plotting the ranges of sample subgroups over time, helping}\\$
$\text{ to determine whether the process variation is in statistical control.}\\$

$\text{11. What are the uses of statistical quality control?} \\$
$\text{The main purpose of SQC is to device statistical techniques which would help in}\\$
$\text{elimination of assignable causes and bring the production process under control.}\\$

$\text{12. Write the control limits for the mean chart.} \\$

$\text{When }\bar {X} \text{and SD are given}\\$

$UCL=\bar {\bar X}+3\frac{\sigma}{\sqrt{n}}\\$

$CL=\bar {\bar X} \\$

$LCL=\bar {\bar X}-3\frac{\sigma}{\sqrt{n}} \\$

$\text{When }\bar {X} \text{and SD are not given}\\$

$UCL=\bar {\bar X}+A_{2}\bar {R}\\$
$CL=\bar {\bar X} \\$
$LCL=\bar {\bar X}-A_{2}\bar {R}\\$

$\text{13. Write the control limits for the R chart.} \\$

$\text{case (i) when SD is given}\\$

$UCL=\bar { R}+3\sigma_{R}\\$
$CL=\bar { R}\\$
$LCL=\bar { R}-3\sigma_{R}\\$

$\text{case (i) when SD is not given}\\$

$UCL=D_{4}\bar { R}\\$
$CL=\bar { R}\\$
$LCL=D_{3}\bar { R}\\$

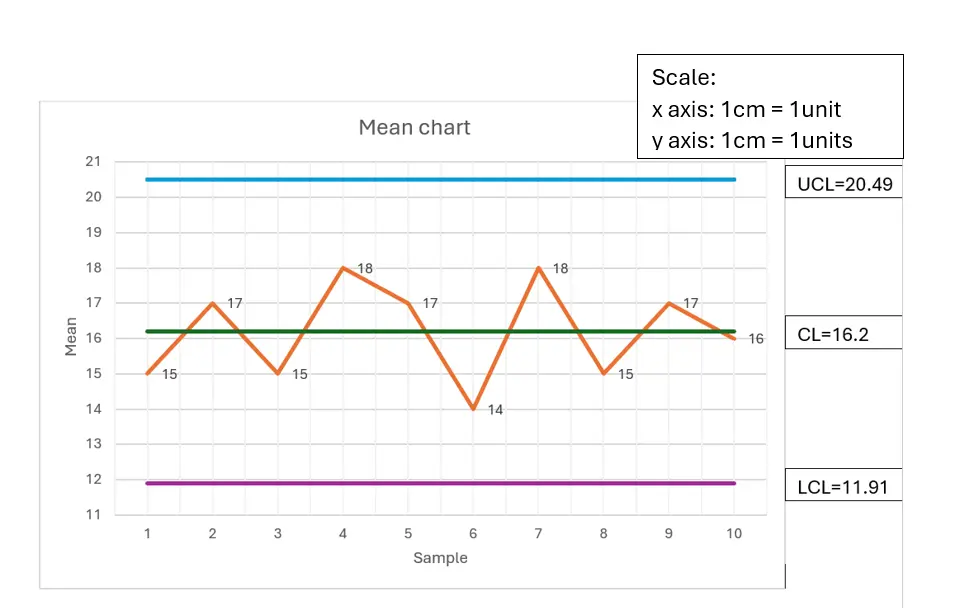

$\text{14. A machine is set to deliver packets of a given weight.Ten samples of size}\\$
$\text{ five each were recorded. Below are given relevant data:}\\$

Sample number	1	2	3	4	5	6	7	8	9	10
X̄	15	17	15	18	17	14	18	15	17	16
R	7	7	4	9	8	7	12	4	11	5

$\text{Calculate the control limits for mean chart and the range chart and then}\\$
$\text{ comment on the state of control. (conversion factors for n = 5,} \; A_{2} =\\$
$0.58,\; D_{3} = 0 \; \text{and }\; D_{4} = 2.115 )\\$

$\bar {\bar X}=\dfrac{\Sigma \bar{X}}{No. of samples}\\$
$\bar {\bar X}==\dfrac{162}{10}\\$
$\bar {\bar X}=16.2\\$
$\bar {R}=\dfrac{\Sigma R}{n}\\$
$\bar {R}=\dfrac{74}{10}\\$
$\bar {R}=7.4\\$

$\text{The control limits for the mean chart are:}\\$
$UCL=\bar {\bar X}+A_{2}\bar {R}\\$
$UCL=16.2+(0.58)(7.4) \\$
$UCL=16.2+4.292\\$
$UCL=20.492\\$
$CL=\bar {\bar X}=16.2\\$
$LCL=\bar {\bar X}-A_{2}\bar {R}\\$
$LCL=16.2-(0.58)(7.4) \\$
$LCL=16.2-4.292\\$
$LCL=11.908\\$

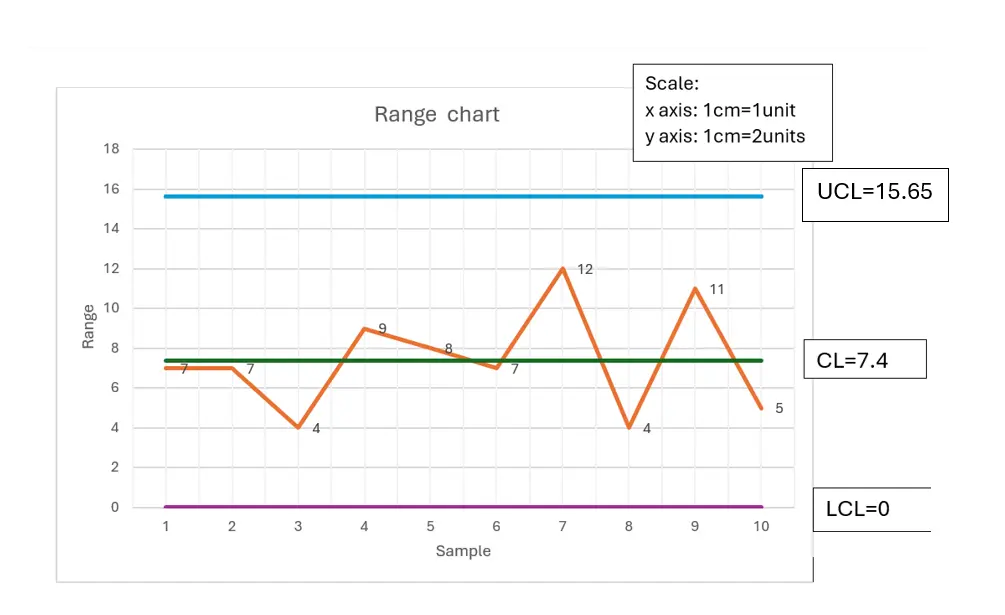

$\text{The control limits of the range chart are:}\\$
$UCL=D_{4}\bar {R}\\$
$UCL=(2.115)(7.4) \\$
$UCL=15.651\\$
$CL=\bar {R}=7.4\\$
$LCL=D_{3}\bar {R}\\$
$LCL=0(7.4) \\$
$LCL=0\\$

$\text{Conclusion: Since all the points in the mean chart and the range chart}\\$
$\text{ fall within the control limits, the process is in control.} \\$

$\text{15. Ten samples each of size five are drawn at regular intervals} \\$
$\text{from a manufacturing process. The sample means}(\bar{X})\text{and their} \\$
$\text{ranges (R) are given below:} \\$

Sample number	1	2	3	4	5	6	7	8	9	10
X̄	49	45	48	53	39	47	46	39	51	45
R	7	5	7	9	5	8	8	6	7	6

$\text{Calculate the control limits in respect of X chart. ( Given } \\$
$A_{2} = 0.58\; D_{3} = 0 \;\text{ and}\; D_{4} = 2.115. \text{ Comment on the state of control.}\\$

$\bar {\bar X}=\dfrac{\Sigma \bar{X}}{\text{No. of samples}}\\$
$\bar {\bar X}==\dfrac{462}{10}\\$
$\bar {\bar X}=46.2\\$
$\bar {R}=\dfrac{\Sigma R}{n}\\$
$\bar {R}=\dfrac{68}{10}\\$
$\bar {R}=6.8\\$

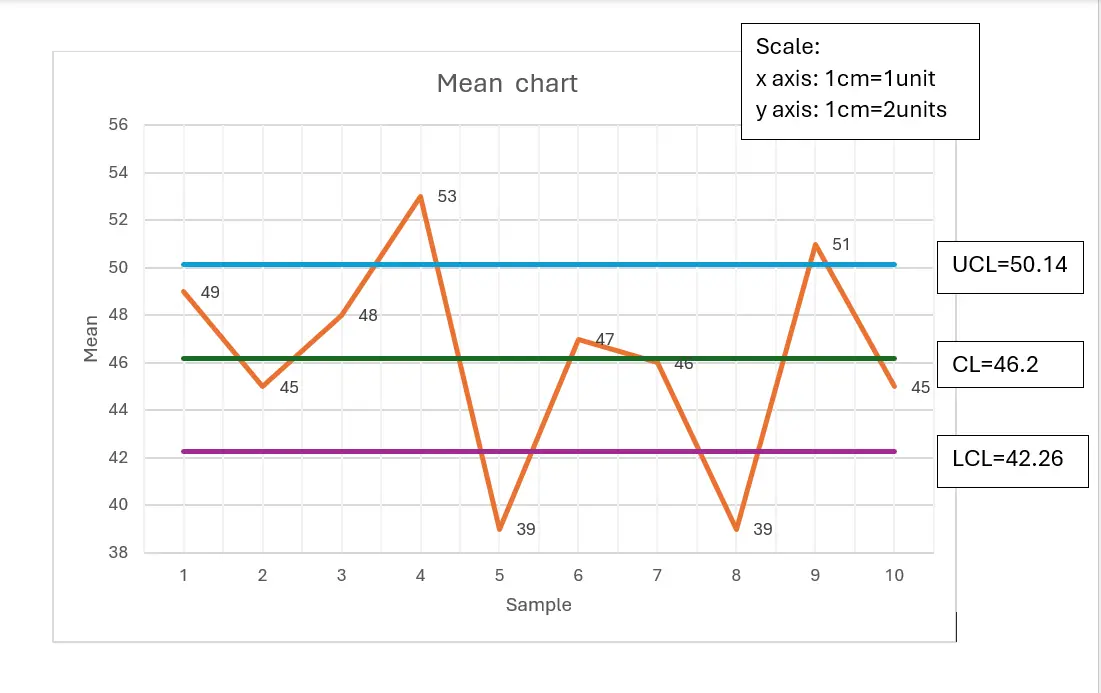

$\text{The control limits for the mean chart are:}\\$
$UCL=\bar {\bar X}+A_{2}\bar {R}\\$
$UCL=46.2+(0.58)(6.8) \\$
$UCL=46.2+3.944\\$
$UCL=50.144\\$
$CL=\bar {\bar X}=46.2\\$
$LCL=\bar {\bar X}-A_{2}\bar {R}\\$
$LCL=46.2-(0.58)(6.8) \\$
$LCL=46.2-3.944\\$
$LCL=42.256\\$

$\text{The control limits of the range chart are:}\\$
$UCL=D_{4}\bar {R}\\$
$UCL=(2.115)(6.8) \\$
$UCL=14.382\\$
$CL=\bar {R}=6.8\\$
$LCL=D_{3}\bar {R}\\$
$LCL=0(6.8) \\$
$LCL=0\\$

$\text{Conclusion: Since all the points in the mean chart falls} \\$
$\text{ outside the control limits, the process is out of control.} \\$

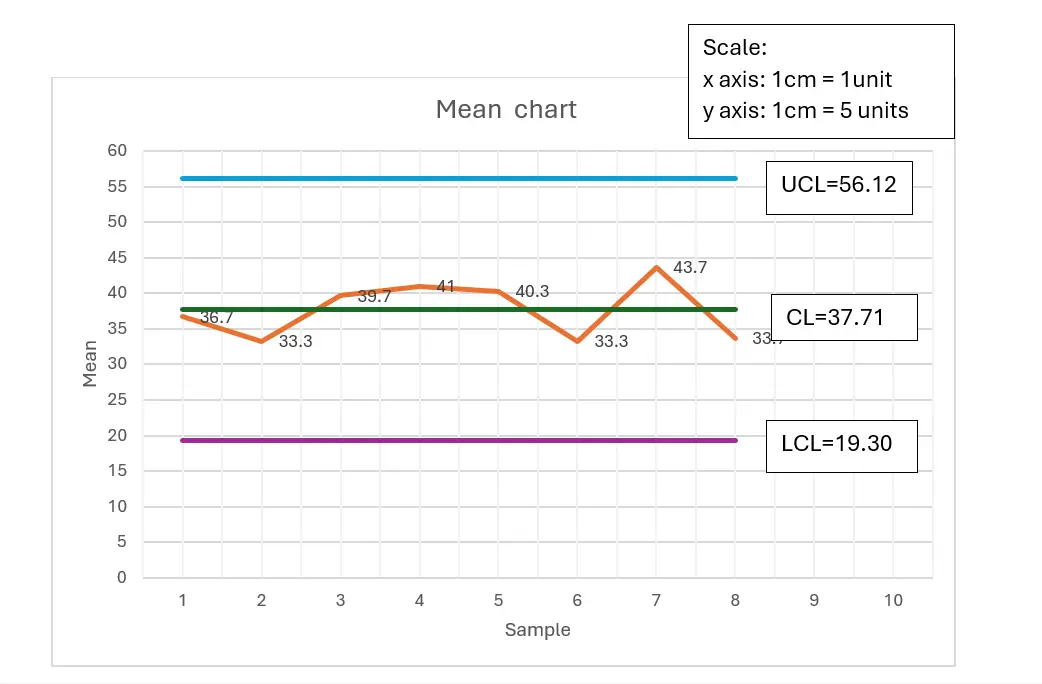

$\text{16. Construct }\;\bar{X}\; \text{and R charts for the following data:}\\$

Sample	Number	Observations
1	32	36	42
2	28	32	40
3	39	52	28
4	50	42	31
5	42	45	34
6	50	29	21
7	44	52	35
8	22	35	44

$\text{(Given for n = 3,}\; A_{2} = 0.58,\; D_{3} = 0 \;\text{and}\; D_{4} = 2.115 )\\$

Sample Number	x̄	R
1	36.7	10
2	33.3	12
3	39.7	24
4	41	19
5	40.3	11
6	33.3	29
7	43.7	17
8	33.7	22

$\bar {\bar X}=\dfrac{\Sigma \bar{X}}{\text{No. of samples}}\\$
$\bar {\bar X}==\dfrac{301.7}{8}\\$
$\bar {\bar X}=37.71\\$
$\bar {R}=\dfrac{\Sigma R}{n}\\$
$\bar {R}=\dfrac{144}{8}\\$
$\bar {R}=18\\$

$\text{The control limits for the mean chart are:}\\$
$UCL=\bar {\bar X}+A_{2}\bar {R}\\$
$UCL=37.71+(1.023)(18) \\$
$UCL=37.71+18.414\\$
$UCL=56.124\\$
$CL=\bar {\bar X}=37.71\\$
$LCL=\bar {\bar X}-A_{2}\bar {R}\\$
$LCL=37.71-(1.023)(18) \\$
$LCL=37.71-18.414\\$
$LCL=19.296\\$

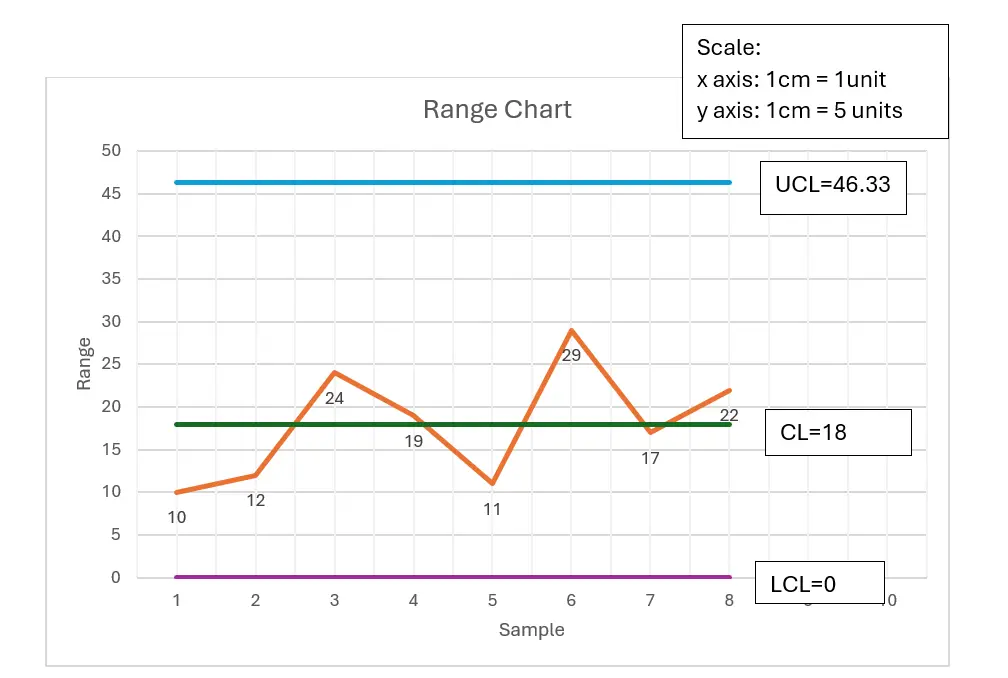

$\text{The control limits of the range chart are:}\\$
$UCL=D_{4}\bar {R}\\$
$UCL=(2.574)(18) \\$
$UCL=46.332\\$
$CL=\bar {R}=18\\$
$LCL=D_{3}\bar {R}\\$
$LCL=0(18) \\$
$LCL=0\\$

$\text{Conclusion: Since all the points in the mean chart and the range chart}\\$
$\text{ fall within the control limits, the process is in control.} \\$

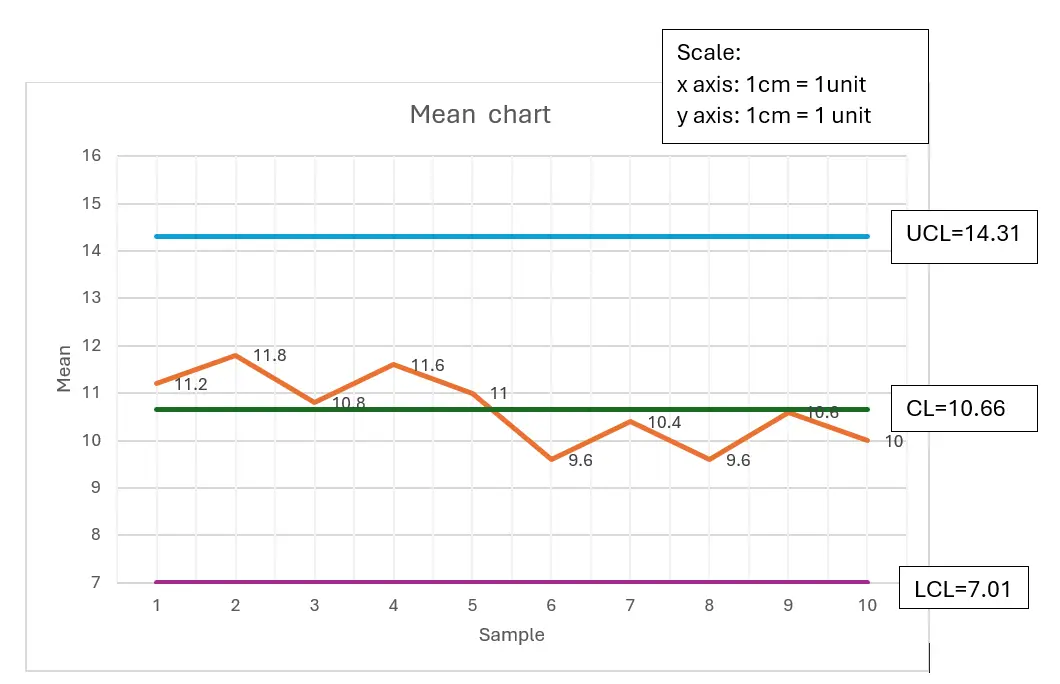

$\text{17. The following data show the values of sample mean}\; \bar(X)\; \text{and its}\\$
$\text{ range (R ) for the samples of size five each. Calculate the values for control}\\$
$\text{ limits for mean , range chart and determine whether the process is in control.}\\$

Sample Number	Mean	Range
1	11.2	7
2	11.8	4
3	10.8	8
4	11.6	5
5	11	7
6	9.6	4
7	10.4	8
8	9.6	4
9	10.6	7
10	10	9

$\text{( conversion factors for n }\;= 5, A_{2} = 0.58 ,D_{3} = 0 \;\text{and }\;D_{4} = 2.115 )\\$

$\bar {\bar X}=\dfrac{\Sigma \bar{X}}{\text{No. of samples}}\\$
$\bar {\bar X}==\dfrac{106.6}{10}\\$
$\bar {\bar X}=10.66\\$
$\bar {R}=\dfrac{\Sigma R}{n}\\$
$\bar {R}=\dfrac{63}{10}\\$
$\bar {R}=6.3\\$

$\text{The control limits for the mean chart are:}\\$
$UCL=\bar {\bar X}+A_{2}\bar {R}\\$
$UCL=10.66+(0.58)(6.3) \\$
$UCL=10.66+3.654\\$
$UCL=14.314\\$
$CL=\bar {\bar X}=10.66\\$
$LCL=\bar {\bar X}-A_{2}\bar {R}\\$
$LCL=10.66-(0.58)(6.3) \\$
$LCL=10.66-3.654\\$
$LCL=7.006\\$

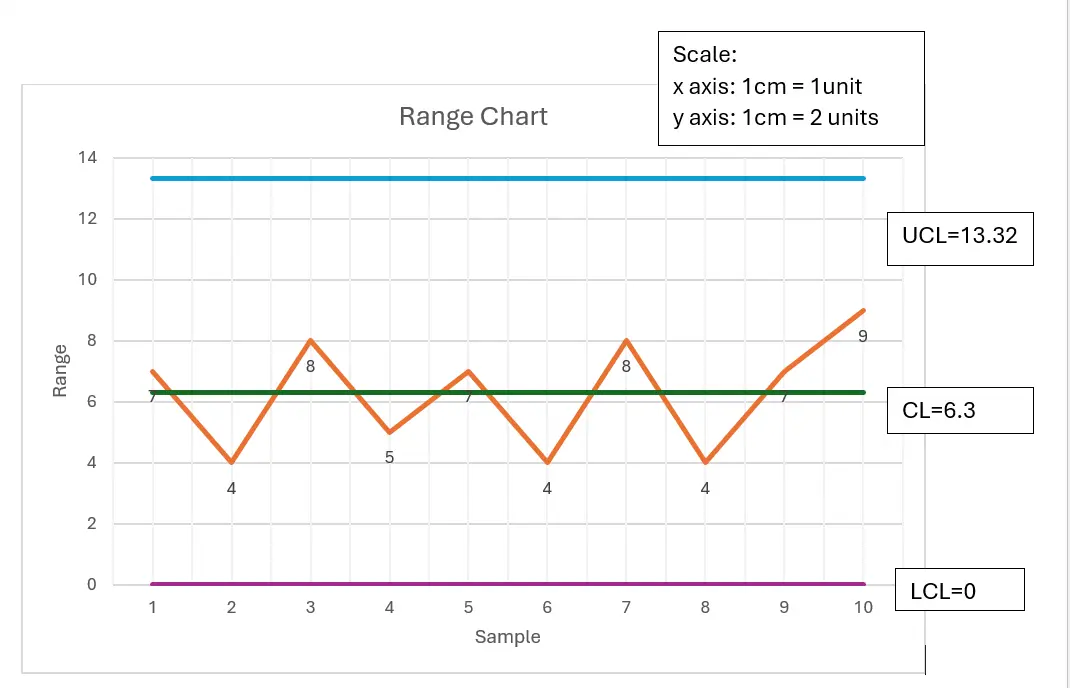

$\text{The control limits of the range chart are:}\\$
$UCL=D_{4}\bar {R}\\$
$UCL=(2.115)(6.3) \\$
$UCL=13.3245\\$
$CL=\bar {R}=6.3\\$
$LCL=D_{3}\bar {R}\\$
$LCL=0(6.3) \\$
$LCL=0\\$

$\text{Conclusion: Since all the points in the mean chart and the range chart}\\$
$\text{ fall within the control limits, the process is in control.} \\$

$\text{18. A quality control inspector has taken ten samples of size four packets}\\$
$\text{ each from a potato chips company.The contents of the sample are given }\\$
$\text{below, Calculate the control limits for mean and range chart.}\\$

Sample Number	Observations
	1	2	3	4
1	12.5	12.3	12.6	12.7
2	12.8	12.4	12.4	12.8
3	12.1	12.6	12.5	12.4
4	12.2	12.6	12.5	12.3
5	12.4	12.5	12.5	12.5
6	12.3	12.4	12.6	12.6
7	12.6	12.7	12.5	12.8
8	12.4	12.3	12.6	12.5
9	12.6	12.5	12.3	12.6
10	12.1	12.7	12.5	12.8

Sample Number	x̄	R
1	12.5	0.4
2	12.6	0.4
3	12.4	0.5
4	12.4	0.4
5	12.5	0.1
6	12.5	0.3
7	12.7	0.3
8	12.5	0.3
9	12.5	0.3
10	12.5	0.7

$\bar {\bar X}=\dfrac{\Sigma \bar{X}}{\text{No. of samples}}\\$
$\bar {\bar X}==\dfrac{125.1}{10}\\$
$\bar {\bar X}=12.51\$
$\bar {R}=\dfrac{\Sigma R}{n}\\$
$\bar {R}=\dfrac{37}{10}\\$
$\bar {R}=3.7\\$

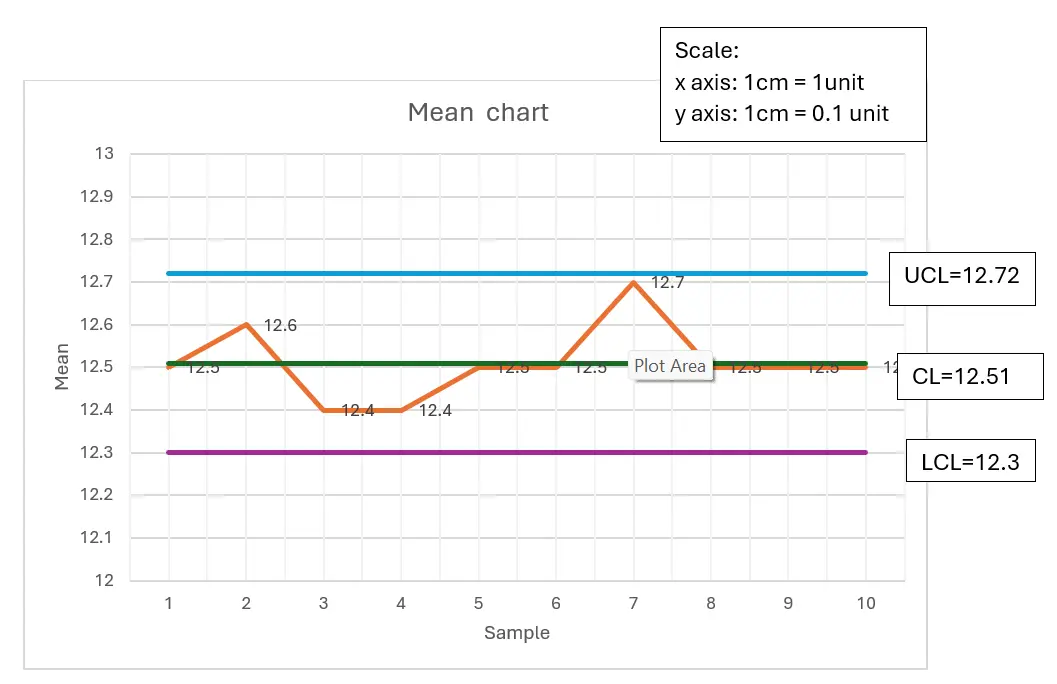

$\text{The control limits for the mean chart are:}\\$
$UCL=\bar {\bar X}+A_{2}\bar {R}\\$
$UCL=12.51+(0.58)(0.37) \\$
$UCL=12.51+0.2146\\$
$UCL=12.72\\$
$CL=\bar {\bar X}=12.51\\$
$LCL=\bar {\bar X}-A_{2}\bar {R}\\$
$LCL=12.51-(0.58)(0.37) \\$
$LCL=12.51-0.2146\\$
$LCL=12.30\$

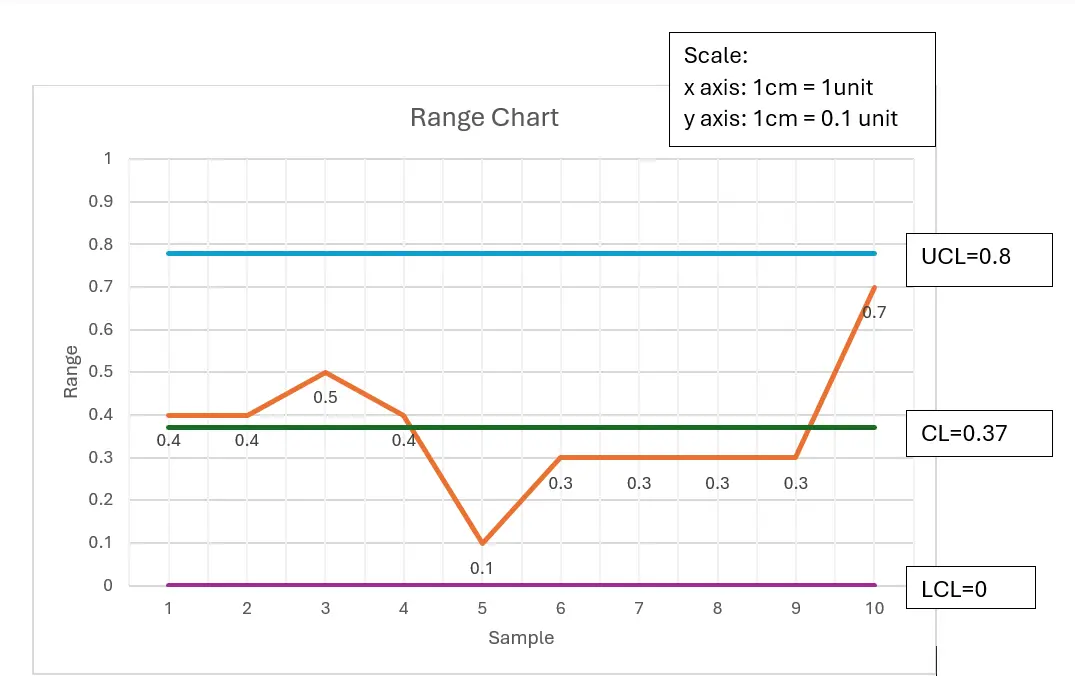

$\text{The control limits of the range chart are:}\\$
$UCL=D_{4}\bar {R}\\$
$UCL=(2.115)(0.37) \\$
$UCL=0.78\\$
$CL=\bar {R}=0.37\\$
$LCL=D_{3}\bar {R}\\$
$LCL=0(0.37) \\$
$LCL=0\\$

$\text{Conclusion: Since all the points in the mean chart and the range chart}\\$
$\text{ fall within the control limits, the process is in control.} \\$

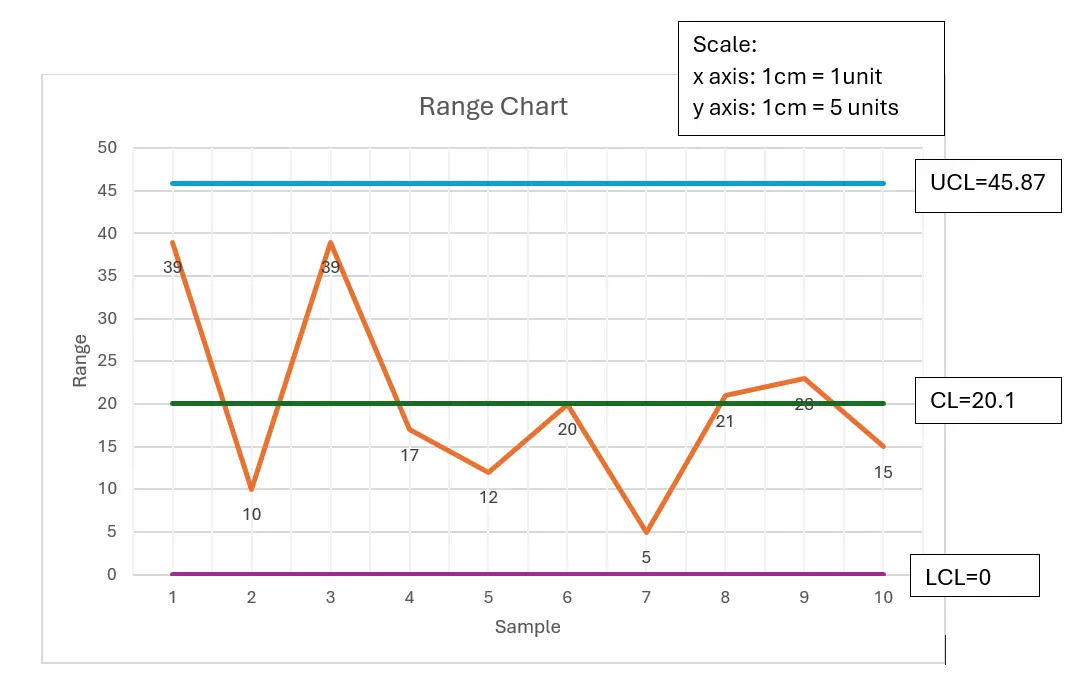

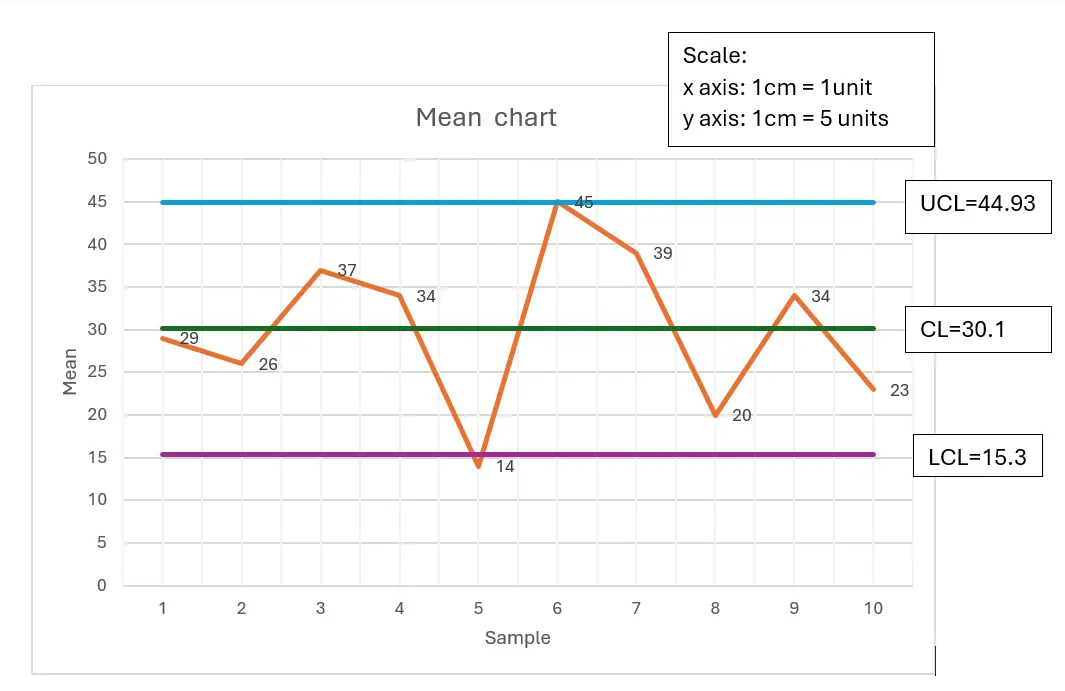

$\text{19. The following data show the values of sample means and the ranges for ten}\\$
$\text{ samples of size 4 each. Construct the control chart for mean and range chart }\\$
$\text{and determine whether the process is in control.}\\$

Sample Number	x̄	R
1	29	39
2	26	10
3	37	39
4	34	17
5	14	12
6	45	20
7	39	5
8	20	21
9	34	23
10	23	15

$\bar {\bar X}=\dfrac{\Sigma \bar{X}}{\text{No. of samples}}\\$
$\bar {\bar X}==\dfrac{301}{10}\\$
$\bar {\bar X}=30.1\$
$\bar {R}=\dfrac{\Sigma R}{n}\\$
$\bar {R}=\dfrac{201}{10}\\$
$\bar {R}=20.1\\$

$\text{The control limits for the mean chart are:}\\$
$UCL=\bar {\bar X}+A_{2}\bar {R}\\$
$UCL=30.1+(0.729)(20.1) \\$
$UCL=30.1+14.73\\$
$UCL=44.93\\$
$CL=\bar {\bar X}=30.1\\$
$LCL=\bar {\bar X}-A_{2}\bar {R}\\$
$LCL=30.1-(0.729)(20.1) \\$
$LCL=30.1-14.73\\$
$LCL=15.37\$

$\text{The control limits of the range chart are:}\\$
$UCL=D_{4}\bar {R}\\$
$UCL=(2.282)(20.1) \\$
$UCL=45.87\\$
$CL=\bar {R}=20.1\\$
$LCL=D_{3}\bar {R}\\$
$LCL=0(20.1) \\$
$LCL=0\\$

$\text{Conclusion: Since two points in the mean chart fall outside}\\$
$\text{ the control limits, the process is out of control.} \\$

$\text{20. In a production process, eight samples of size 4 are collected and their means }\\$
$\text{and ranges are given below. Construct mean chart and range chart with control limits.}\\$

Sample Number	x̄	R
1	12	2
2	13	5
3	11	4
4	12	2
5	14	3
6	13	2
7	16	4
8	15	3

$\bar {\bar X}=\dfrac{\Sigma \bar{X}}{\text{No. of samples}}\\$
$\bar {\bar X}==\dfrac{106}{8}\\$
$\bar {\bar X}=13.25\$
$\bar {R}=\dfrac{\Sigma R}{n}\\$
$\bar {R}=\dfrac{25}{8}\\$
$\bar {R}=3.125\\$

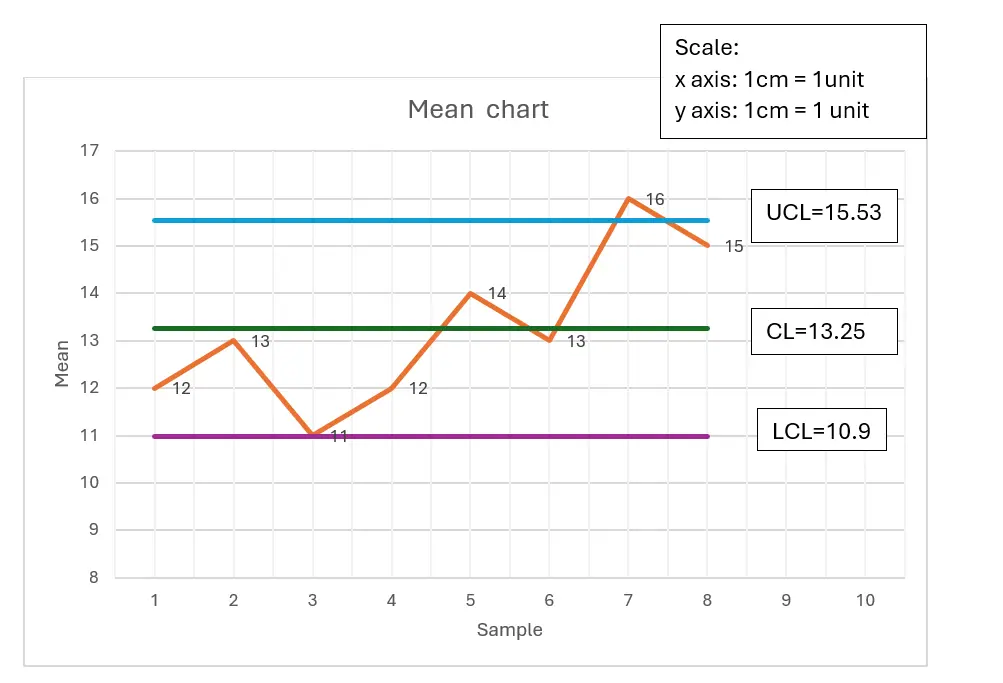

$\text{The control limits for the mean chart are:}\\$
$UCL=\bar {\bar X}+A_{2}\bar {R}\\$
$UCL=13.25+(0.729)(3.125) \\$
$UCL=13.25+2.28\\$
$UCL=15.53\\$
$CL=\bar {\bar X}=13.25\\$
$LCL=\bar {\bar X}-A_{2}\bar {R}\\$
$LCL=13.25-(0.729)(3.125) \\$
$LCL=30.1-2.28\\$
$LCL=10.97\$

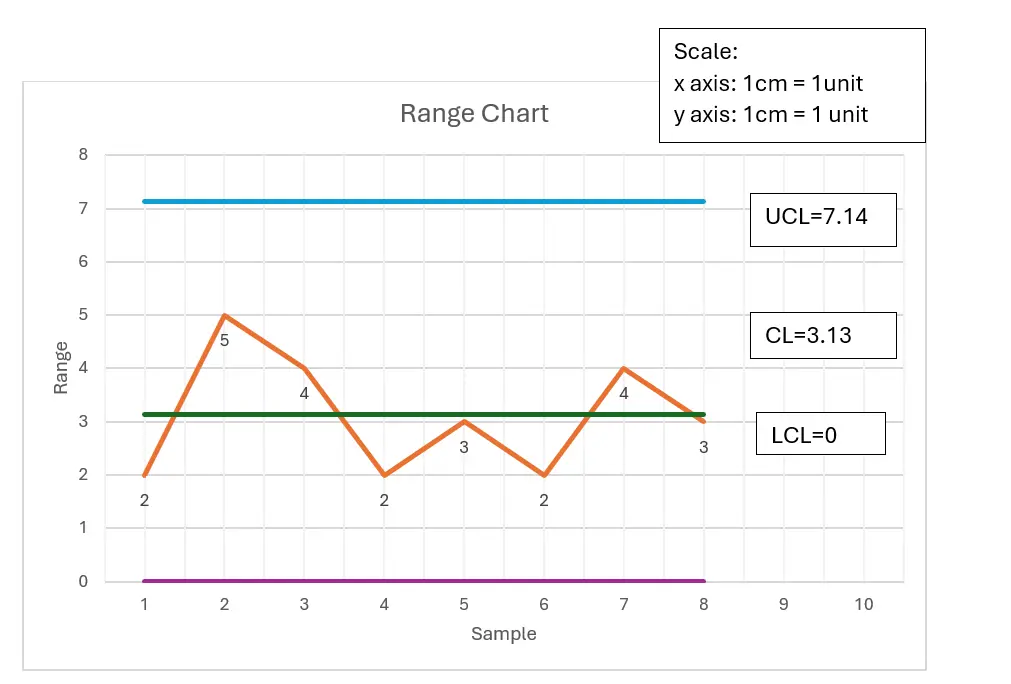

$\text{The control limits of the range chart are:}\\$
$UCL=D_{4}\bar {R}\\$
$UCL=(2.282)(3.125) \\$
$UCL=7.14\\$
$CL=\bar {R}=3.125\\$
$LCL=D_{3}\bar {R}\\$
$LCL=0(3.125) \\$
$LCL=0\\$

$\text{Conclusion: Since one point in the mean chart lies outside}\\$
$\text{ the control limits, the process is out of control.} \\$

$\text{21. In a certain bottling industry the quality control inspector recorded} \\$
$\text{the weight of each of the 5 bottles selected at random during each hour} \\$
$\text{ of four hours in the morning.}\\$

Time	Weights in ml
8:00 AM	43	41	42	43	41
9:00 AM	40	39	40	39	44
10:00 AM	42	42	43	38	40
11:00 AM	39	43	40	39	42

$\bar {\bar X}=\dfrac{\Sigma \bar{X}}{\text{No. of samples}}\\$
$\bar {\bar X}==\dfrac{164}{4}\\$
$\bar {\bar X}=41\$
$\bar {R}=\dfrac{\Sigma R}{n}\\$
$\bar {R}=\dfrac{16}{4}\\$
$\bar {R}=4\\$

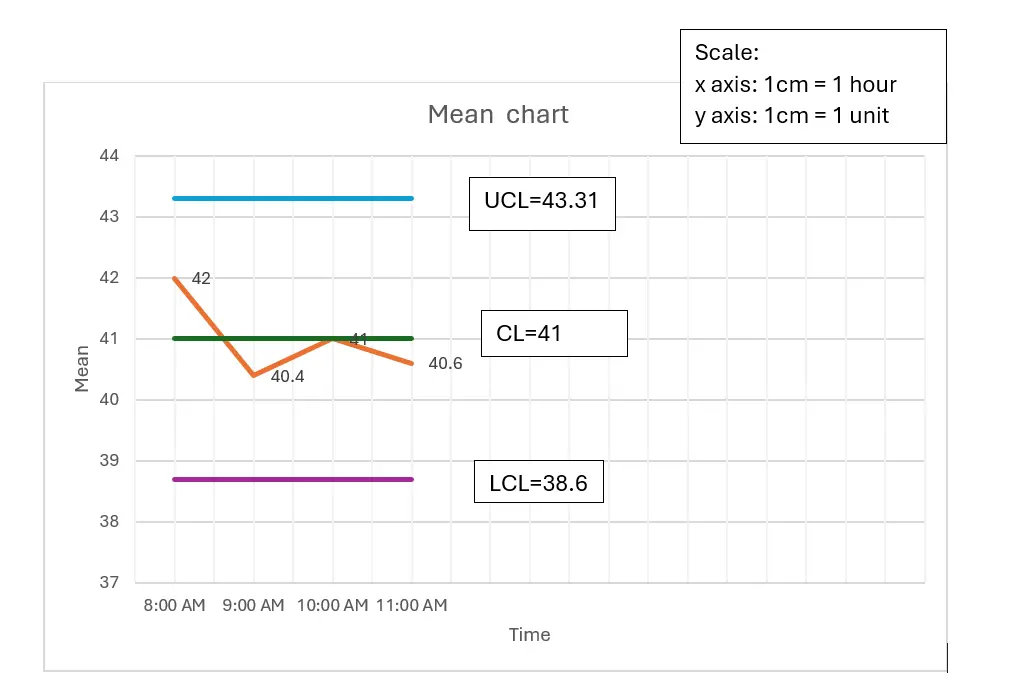

$\text{The control limits for the mean chart are:}\\$
$UCL=\bar {\bar X}+A_{2}\bar {R}\\$
$UCL=41+(0.577)(4) \\$
$UCL=41+2.308\\$
$UCL=43.31\\$
$CL=\bar {\bar X}=41\\$
$LCL=\bar {\bar X}-A_{2}\bar {R}\\$
$LCL=41-(0.577)(4) \\$
$LCL=41-2.308\\$
$LCL=38.69\$

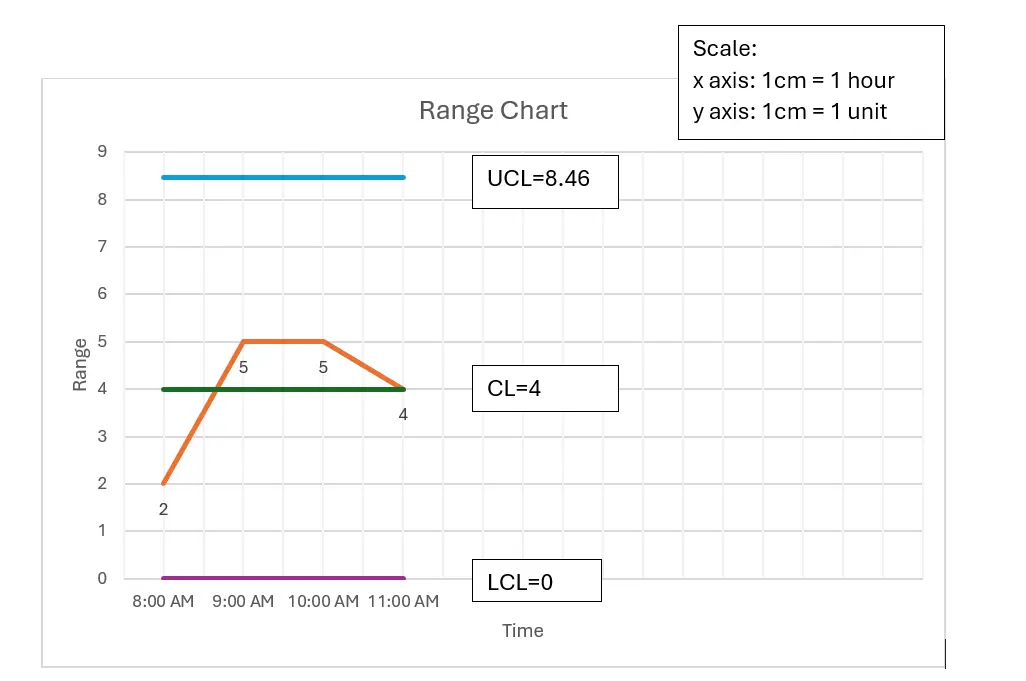

$\text{The control limits of the range chart are:}\\$
$UCL=D_{4}\bar {R}\\$
$UCL=(2.114)(4) \\$
$UCL=8.46\\$
$CL=\bar {R}=4\\$
$LCL=D_{3}\bar {R}\\$
$LCL=0(4) \\$
$LCL=0\\$

$\text{Conclusion: Since all the points in the mean chart and the range chart}\\$
$\text{ fall within the control limits, the process is in control.} \\$

Applied Statistics Exercise 9.3

Applied Statistics Exercise 9.3

Related Posts:

Leave a Reply Cancel reply

Applied Statistics Exercise 9.3

Related Posts:

Reader Interactions

Leave a Reply Cancel reply
