Operations Research Exercise 10.1

$\text{1. What is transportation problem?}\\$
$\text{The objective of transportation problem is to determine the amount to be}\\$
$\text{transported from each origin to each destinations such that the total }\\$
$\text{transportation cost is minimized.}\\$

$\text{2. Write mathematical form of transportation problem.}\\$
$\text{Let there be m origins and n destinations. Let the amount of supply }\\$
$\text{at the }i^{th}\; \text{origin is}\; a_{i}.\; \text{Let the demand at}\; j^{th} \; \text{destination is} \; b_{j.}\\$
$\text{The cost of transporting one unit of an item from origin i to destination}\\$
$\text{ j is}\; c_{ij}\; \text{ and is known for all combinations (i,j). Quantity transported} \\$
$\text{from origin i to destination j is}\; x_{ij .\\$

$\text{The objective is to determine the quantity}\; x_{ij} \text{to be transported }\\$
$\text{ over all routes (i,j) so as to minimize the total transportation} \\$
$\text{ cost. The supply limits at the origins and the demand requirements } \\$
$\text{at the destinations must be satisfied.} \\$
$\text{The linear programming model representing the transportation problem is:}\\$
$\text{The objective function is Minimize Z =}\sum_{i=1}^{m} \sum_{j=1}^{n} C_{ij} x_{ij} \\$
$\text{Subject to the constraints}\\$
$\sum_{j=1}^{n}x_{ij} =a_{i}i=1,2....m \;\text{(Supply constraints)} \\$
$\sum_{i=1}^{m}x_{ij} =b_{j}i=1,2....n \;\text{(Demand constraints)} \\$
$x_{ij} \ge 0 \;\text{for all i,j }\text{(non-negative restrictions)} \\$

$\text{3. What is feasible solution and non degenerate solution in transportation problem?}\\$
$\text{A feasible solution to a transportation problem is a set of non-negative } \\$
$\text{values }x_{ij}\; \text{(i=1,2,..,m, j=1,2,…n) that satisfies the constraints.} \\$
$\text{If a basic feasible solution to a transportation problem contains exactly} \\$
$\text{ m+n-1 allocations in independent positions, it is called a Non degenerate } \\$
$\text{basic feasible solution. Here m is the number of rows and n is the number} \\$
$\text{ of columns in a transportation problem.} \\$

$\text{4. What do you mean by balanced transportation problem?}\\$
$\text{A balanced transportation problem is a transportation problem in which }\\$
$\text{the total supply exactly equals the total demand.}\\$

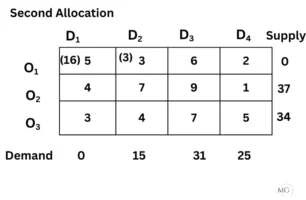

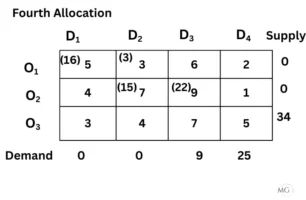

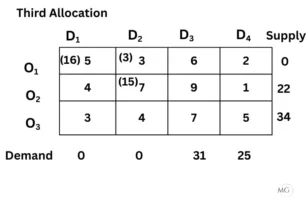

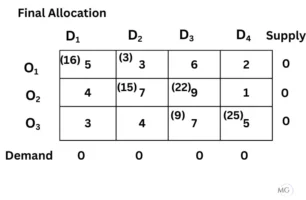

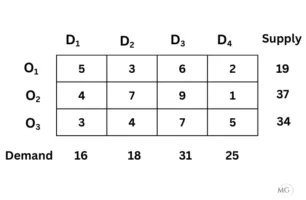

$\text{5. Find an initial basic feasible solution of the following}\\$
$\text{problem using north west corner rule.}\\$

$\text{Total supply=Total demand. Therefore the given problem is a balanced }\\$
$\text{transportation problem. Therefore, there exists a feasible solution.}\\$

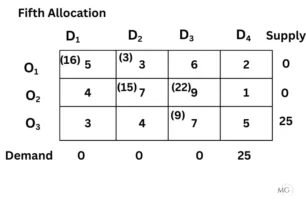

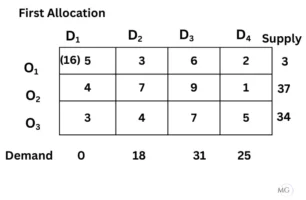

$\text{Transportation Schedule}:\\$
$O_{1}\to D_{1}, \; O_{1}\to D_{2}, \; O_{2}\to D_{2}, \; \\$
$O_{2}\to D_{3}, \; O_{3}\to D_{3}, \; O_{3}\to D_{4}\\$
$\text{Total Transportation Cost}:=16\times 5+3\times \\$
$3+15\times 7+22\times 9+9\times 7+25\times 5\\$
$\text{Total Transportation Cost}:80+9+105+198+63+125\\$
$\text{Total Transportation Cost}:Rs. 580\\$

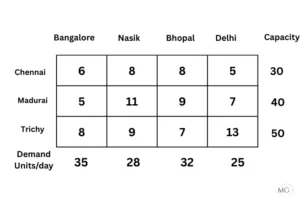

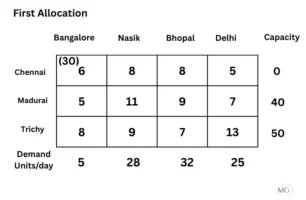

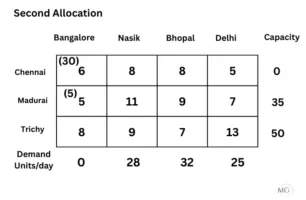

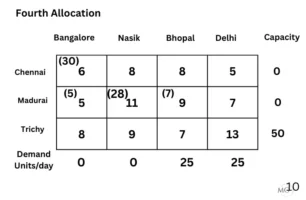

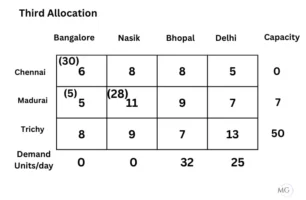

$\text{6. Determine an initial basic feasible solution of the following }\\$
$\text{transportation problem by north west corner method.}\\$

$\text{Total supply=Total demand. Therefore the given problem is a balanced }\\$
$\text{transportation problem. Therefore, there exists a feasible solution.}\\$

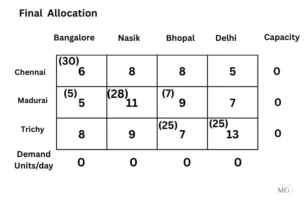

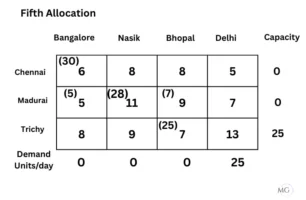

$\text{Transportation Schedule}:\\$
$\text{Chennai} \to \text{Bangalore}, \; \text{Madurai} \to \text{Bangalore},\\$
$\text{Madurai} \to \text{Nasik}, \; \text{Madurai} \to \text{Bhopal}, \; \text{Trichy} \\$
$\to \text{Bhopal}, \; \text{Trichy} \to \text{Delhi} \\$

$\text{Total Transportation Cost}:=30\times 6+5\times 5+28\times 11+7\times 9+25\times 7+25\times 13\\$
$\text{Total Transportation Cost}:180+25+308+63+175+325\\$
$\text{Total Transportation Cost}:Rs. 1076\\$

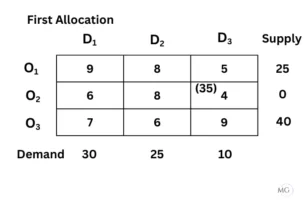

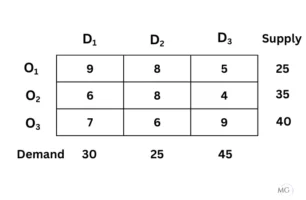

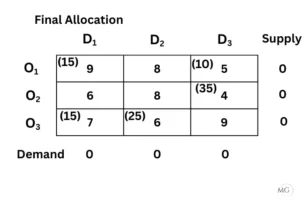

$\text{7. Obtain an initial basic feasible solution to the following}\\$
$\text{transportation problem by using least- cost method.} \\$

$\text{Total supply=Total demand. Therefore the given problem is a balanced }\\$
$\text{transportation problem. Therefore, there exists a feasible solution.}\\$

$\text{Transportation Schedule}:\\$
$O_{1}\to D_{1}, \; O_{1}\to D_{3}, \; O_{2}\to D_{3}, \; O_{3}\to D_{1}, \; O_{3}\to D_{2}\\$
$\text{Total Transportation Cost}:=15\times 9+10\times 5+35\times 4+15\times 7+25\times 6\\$
$\text{Total Transportation Cost}:135+50+140+105+150\\$
$\text{Total Transportation Cost}:Rs. 580\\$

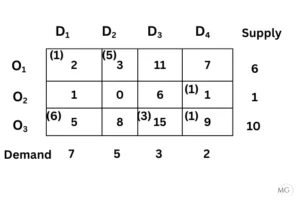

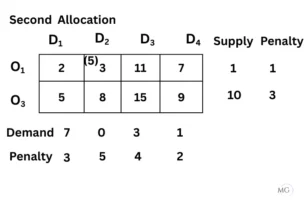

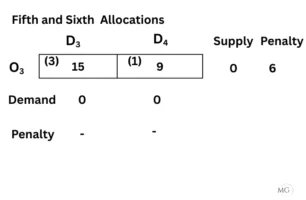

$\text{8. Explain Vogel's approximation method by obtaining initial feasible}\\$
$\text{solution of the following transportation problem.} \\$

$\text{Total supply=Total demand. Therefore the given problem is a balanced }\\$
$\text{transportation problem. Therefore, there exists a feasible solution.}\\$

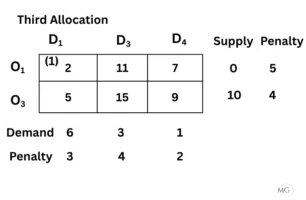

$\text{Thus, we have the following allocations.}\\$

$\text{Transportation Schedule}:\\$
$O_{1}\to D_{1}, \; O_{1}\to D_{2}, \; O_{2}\to D_{4}, \; O_{3}\to D_{1}, \; O_{3}\to D_{3}\; O_{3}\to D_{4}\\$
$\text{Total Transportation Cost}:=1\times 2+5\times 3+1\times 1+3\times 15+1\times 9\\$
$\text{Total Transportation Cost}:2+15+1+30+45+9\\$
$\text{Total Transportation Cost}:Rs. 102\\$

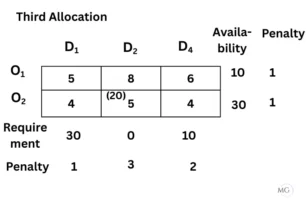

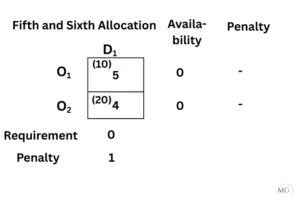

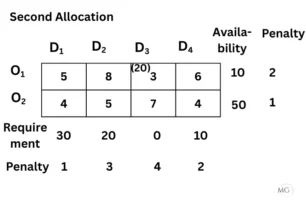

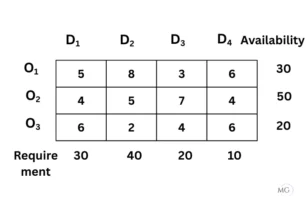

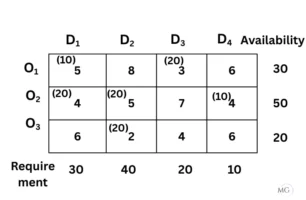

$\text{9. Consider the following transportation problem.}\\$

$\text{Determine initial basic feasible solution by VAM.} \\$

$\text{Total availability =Total requirement. Therefore the given problem is a balanced }\\$
$\text{transportation problem. Therefore, there exists a feasible solution.}\\$

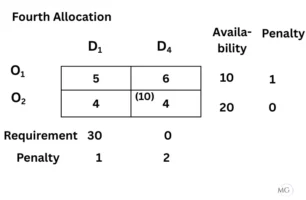

$\text{Thus, we have the following allocations.}\\$

$\text{Transportation Schedule}:\\$
$O_{1}\to D_{1}, \; O_{1}\to D_{3}, \; O_{2}\to D_{1}, \; O_{2}\to D_{2}, \; O_{2}\to D_{4}\; O_{3}\to D_{2}\\$
$\text{Total Transportation Cost}:=10\times 5+20\times 3+20\times 4+20\times 5+10\times 4+20\times 2\\$
$\text{Total Transportation Cost}:50+6080+100+40+40\\$
$\text{Total Transportation Cost}:Rs. 370\\$

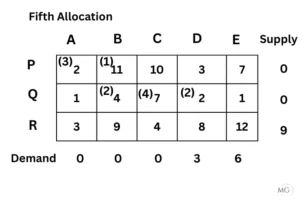

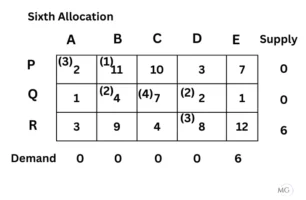

$\text{10. Determine basic feasible solution to the following transportation}\\$
$\text{problem using North west Corner rule.}\\$

$\text{Total supply=Total demand. Therefore the given problem is a balanced }\\$
$\text{transportation problem. Therefore, there exists a feasible solution.}\\$

$\text{Transportation Schedule}:\\$
$P\to A, \; P\to B, \; Q\to B, \; Q\to C, \; Q\to D,\; R\to D, R\to E,\\$
$\text{Total Transportation Cost}:=3\times 2+1\times 11+2\times 4+4\times 7+2\times 2 3\times 8+6\times 12\\$
$\text{Total Transportation Cost}:6+11+8+28+4+24+72\\$
$\text{Total Transportation Cost}:Rs. 153\\$

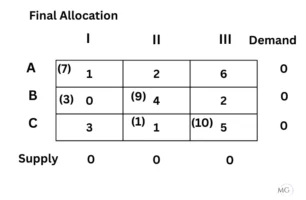

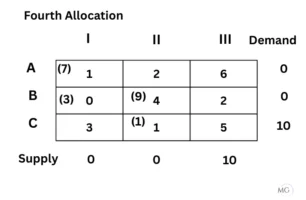

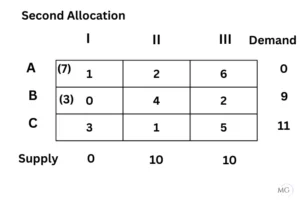

$\text{11. Find the initial basic feasible solution of the following }\\$
$\text{transportation problem: Using North West Corner rule}\\$

$\text{Total supply=Total demand. Therefore the given problem is a balanced }\\$
$\text{transportation problem. Therefore, there exists a feasible solution.}\\$

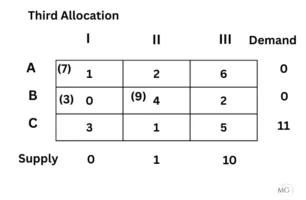

$\text{Transportation Schedule}:\\$
$A\to I, \; B\to I, \; B\to II, \; C\to II, \; C\to III\\$
$\text{Total Transportation Cost}:=7\times 1+3\times 0+1\times 1+10\times 5\\$
$\text{Total Transportation Cost}:7+0+36+1+50\\$
$\text{Total Transportation Cost}:Rs. 94\\$

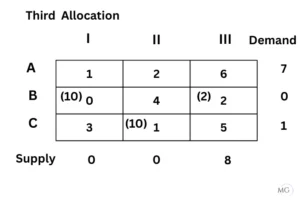

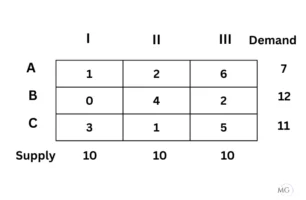

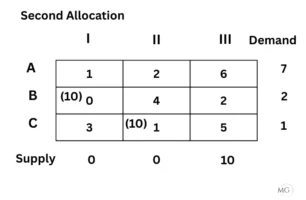

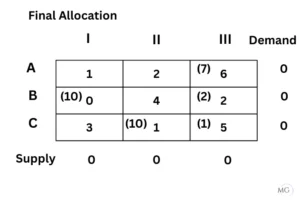

$\text{12. Find the initial basic feasible solution of the following }\\$
$\text{transportation problem: Using Least Cost method.}\\$

$\text{Total supply=Total demand. Therefore the given problem is a balanced }\\$
$\text{transportation problem. Therefore, there exists a feasible solution.}\\$

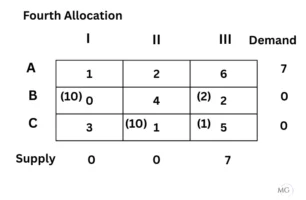

$\text{Transportation Schedule}:\\$
$A\to III, \; B\to I, \; B\to III, \; C\to II, \; C\to III\\$
$\text{Total Transportation Cost}:=7\times 6+10\times 0+2\times 2+10\times 1+1\times 5\\$
$\text{Total Transportation Cost}:42+0+4+10+5\\$
$\text{Total Transportation Cost}:Rs. 61\\$

$\text{13. Find the initial basic feasible solution of the following }\\$
$\text{transportation problem: Using Vogel's approximation method.}\\$

$\text{Total supply=Total demand. Therefore the given problem is a balanced }\\$
$\text{transportation problem. Therefore, there exists a feasible solution.}\\$

$\text{Thus, we have the following allocations.}\\$

$\text{Transportation Schedule}:\\$
$A\to I, \; B\to I, \; B\to III, \; C\to I, \; C\to II\\$
$\text{Total Transportation Cost}:=7\times 1+2\times 0+10\times 2+1\times 3+10\times 1\\$
$\text{Total Transportation Cost}:7+0+20+3+10\\$
$\text{Total Transportation Cost}:Rs. 40\\$

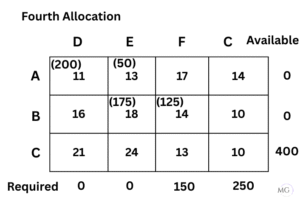

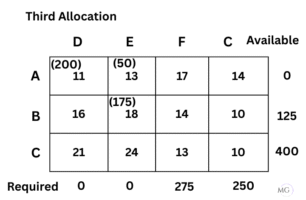

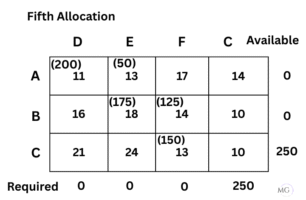

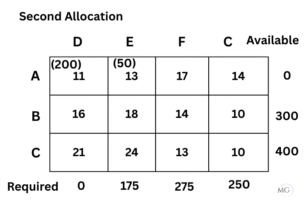

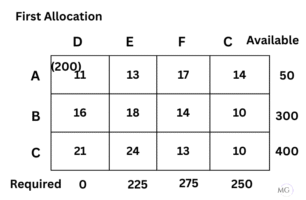

$\text{14. Obtain the initial basic feasible solution to the following }\\$
$\text{transportation problem by North West Corner method.}\\$

$\text{Total supply=Total demand. Therefore the given problem is a balanced }\\$
$\text{transportation problem. Therefore, there exists a feasible solution.}\\$

$\text{Transportation Schedule}:\\$
$A\to D, \; A\to E, \; B\to E, \; B\to F, \; C\to F, C\to C\\$
$\text{Total Transportation Cost}:=200\times 11+50\times 13+175\times 18+125\times 14+150\times 13+250\times 10\\$
$\text{Total Transportation Cost}:2200+650+3150+1750+1950+2500\\$
$\text{Total Transportation Cost}:Rs. 12,200\\$
